Snippy_Streamline¶
Quick Facts¶
Workflow Type | Applicable Kingdom | Last Known Changes | Command-line Compatibility | Workflow Level |
---|---|---|---|---|
Phylogenetic Construction | Bacteria | PHB v2.3.0 | Yes; some optional features incompatible | Set-level |
Snippy_Streamline_PHB¶
The Snippy_Streamline
workflow is an all-in-one approach to generating a reference-based phylogenetic tree and associated SNP-distance matrix. The workflow can be run in multiple ways with options for:
- The reference genome to be provided by the user, or automatically selected using the
Centroid
task andAssembly_Fetch
sub-workflow to find a close reference genome to your dataset- Note: If no reference genome is provided, then the user MUST fill in the
assembly_fasta
field for automatic reference genome selection.
- Note: If no reference genome is provided, then the user MUST fill in the
- The phylogeny to be generated by optionally
- masking user-specified regions of the genome (providing a bed file to
snippy_core_bed
) - producing either a core or pan-genome phylogeny and SNP-matrix (
core_genome
; default = true) - masking recombination detected by gubbins, or not (
use_gubbins
; default=true) - choosing the nucleotide substitution (by specifying
iqtree2_model
), or allowing IQ-Tree's ModelFinder to identify the best model for your dataset (default)
- masking user-specified regions of the genome (providing a bed file to
Sequencing Data Requirements
Sequencing data used in the Snippy_Streamline workflow must:
- Be Illumina reads
- Be generated by unbiased whole genome shotgun sequencing
- Pass appropriate QC thresholds for the taxa to ensure that the reads represent reasonably complete genomes that are free of contamination from other taxa or cross-contamination of the same taxon.
- If masking recombination with
Gubbins
, input data should represent complete genomes from the same strain/lineage (e.g. MLST) that share a recent common ancestor.
Reference Genomes
If reference genomes have multiple contigs, they will not be compatible with using Gubbins to mask recombination in the phylogenetic tree. The automatic selection of a reference genome by the workflow may result in a reference with multiple contigs. In this case, an alternative reference genome should be sought.
Inputs¶
To run Snippy_Streamline, either a reference genome must be provided (reference_genome_file
), or you must provide assemblies of the samples in your tree so that the workflow can automatically find and download the closest reference genome to your dataset (via assembly_fasta
)
Guidance for optional inputs
Several core and optional tasks can be used to generate the Snippy phylogenetic tree, making it highly flexible and suited to a wide range of datasets. You will need to decide which tasks to use depending on the genomes that you are analyzing. Some guidelines for the optional tasks to use for different genome types are provided below.
Default settings (suitable for most bacteria)
The default settings are as follows and are suitable for generating phylogenies for most bacteria
core_genome
= true (creates core genome phylogeny)use_gubbins
= true (recombination masked)- nucleotide substitution model will be defined by IQTree's Model Finder
Phylogenies of Mycobacterium tuberculosis complex
Phylogenies of MTBC are typically constructed
- Using the H37Rv reference genome
reference_genome_file
= gs://theiagen-public-files-rp/terra/theiaprok-files/Mtb_NC_000962.3.fasta
- Masking repetitive regions of the genome (e.g. PE/PPE genes) that are often misaligned
snippy_core_bed
= gs://theiagen-public-files/terra/theiaprok-files/Mtb_NC_000962.3.bed
- Without masking recombination because TB can be considered non-recombinant
use_gubbins
= false
- Using the core genome
core_genome
= true (as default)
Terra Task Name | Variable | Type | Description | Default Value | Terra Status |
---|---|---|---|---|---|
snippy_streamline | read1 | Array[File] | The forward read files | Required | |
snippy_streamline | read2 | Array[File] | The reverse read files | Required | |
snippy_streamline | samplenames | Array[String] | The names of your samples | Required | |
snippy_streamline | tree_name | String | String of your choice to prefix output files | Required | |
centroid | cpu | Int | Number of CPUs to allocate to the task | 1 | Optional |
centroid | disk_size | Int | Amount of storage (in GB) to allocate to the task | 50 | Optional |
centroid | docker | String | The Docker container to use for the task | us-docker.pkg.dev/general-theiagen/theiagen/centroid:0.1.0 | Optional |
centroid | memory | Int | Amount of memory/RAM (in GB) to allocate to the task | 4 | Optional |
snippy_streamline | assembly_fasta | Array[File] | The assembly files for your samples | Optional | |
snippy_streamline | reference_genome_file | File | Reference genome in FASTA or GENBANK format (must be the same reference used in Snippy_Variants workflow); provide this if you want to skip the detection of a suitable reference | Optional | |
ncbi_datasets_download_genome_accession | cpu | Int | Number of CPUs to allocate to the task | 1 | Optional |
ncbi_datasets_download_genome_accession | disk_size | Int | Amount of storage (in GB) to allocate to the task | 50 | Optional |
ncbi_datasets_download_genome_accession | docker | String | The Docker container to use for the task | us-docker.pkg.dev/general-theiagen/staphb/ncbi-datasets:14.13.2 | Optional |
ncbi_datasets_download_genome_accession | include_gbff3 | Boolean | When set to true, outputs a gbff3 file (Genbank file) | FALSE | Optional |
ncbi_datasets_download_genome_accession | include_gff | Boolean | When set to true, outputs a gff file (Annotation file) | FALSE | Optional |
ncbi_datasets_download_genome_accession | memory | Int | Amount of memory/RAM (in GB) to allocate to the task | 4 | Optional |
referenceseeker | cpu | Int | Number of CPUs to allocate to the task | 4 | Optional |
referenceseeker | disk_size | Int | Amount of storage (in GB) to allocate to the task | 200 | Optional |
referenceseeker | docker | String | The Docker container to use for the task | us-docker.pkg.dev/general-theiagen/biocontainers/referenceseeker:1.8.0--pyhdfd78af_0 | Optional |
referenceseeker | memory | Int | Amount of memory/RAM (in GB) to allocate to the task | 16 | Optional |
referenceseeker | referenceseeker_ani_threshold | Float | Bidirectional average nucleotide identity to use as a cut off for identifying reference assemblies with ReferenceSeeker; default value set according to https://github.com/oschwengers/referenceseeker#description | 0.95 | Optional |
referenceseeker | referenceseeker_conserved_dna_threshold | Float | Conserved DNA % to use as a cut off for identifying reference assemblies with ReferenceSeeker; default value set according to https://github.com/oschwengers/referenceseeker#description | 0.69 | Optional |
referenceseeker | referenceseeker_db | File | Database to use with ReferenceSeeker | gs://theiagen-public-files-rp/terra/theiaprok-files/referenceseeker-bacteria-refseq-205.v20210406.tar.gz | Optional |
snippy_tree_wf | call_shared_variants | Boolean | Activates the shared variants analysis task | TRUE | Optional |
snippy_tree_wf | core_genome | Boolean | When "true", workflow generates core genome phylogeny; when "false", whole genome is used | TRUE | Optional |
snippy_tree_wf | data_summary_column_names | String | A comma-separated list of the column names from the sample-level data table for generating a data summary (presence/absence .csv matrix) | Optional | |
snippy_tree_wf | data_summary_terra_project | String | The billing project for your current workspace. This can be found after the "#workspaces/" section in the workspace's URL | Optional | |
snippy_tree_wf | data_summary_terra_table | String | The name of the sample-level Terra data table that will be used for generating a data summary | Optional | |
snippy_tree_wf | data_summary_terra_workspace | String | The name of the Terra workspace you are in. This can be found at the top of the webpage, or in the URL after the billing project. | Optional | |
snippy_tree_wf | gubbins_cpu | Int | Number of CPUs to allocate to the task | 4 | Optional |
snippy_tree_wf | gubbins_disk_size | Int | Amount of storage (in GB) to allocate to the task | 100 | Optional |
snippy_tree_wf | gubbins_docker | String | The Docker container to use for the task | us-docker.pkg.dev/general-theiagen/biocontainers/gubbins:3.3--py310pl5321h8472f5a_0 | Optional |
snippy_tree_wf | gubbins_memory | Int | Amount of memory/RAM (in GB) to allocate to the task | 32 | Optional |
snippy_tree_wf | iqtree2_bootstraps | String | Number of replicates for http://www.iqtree.org/doc/Tutorial#assessing-branch-supports-with-ultrafast-bootstrap-approximation (Minimum recommended= 1000) | 1000 | Optional |
snippy_tree_wf | iqtree2_cpu | Int | Number of CPUs to allocate to the task | 4 | Optional |
snippy_tree_wf | iqtree2_disk_size | Int | Amount of storage (in GB) to allocate to the task | 100 | Optional |
snippy_tree_wf | iqtree2_docker | String | The Docker container to use for the task | us-docker.pkg.dev/general-theiagen/staphb/iqtree2:2.1.2 | Optional |
snippy_tree_wf | iqtree2_memory | Int | Amount of memory/RAM (in GB) to allocate to the task | 32 | Optional |
snippy_tree_wf | iqtree2_model | String | Nucelotide substitution model to use when generating the final tree with IQTree2. By default, IQtree runs its ModelFinder algorithm to identify the model it thinks best fits your dataset | Optional | |
snippy_tree_wf | iqtree2_opts | String | Additional options to pass to IQTree2 | Optional | |
snippy_tree_wf | midpoint_root_tree | Boolean | A True/False option that determines whether the tree used in the SNP matrix re-ordering task should be re-rooted or not. Options: true of false | TRUE | Optional |

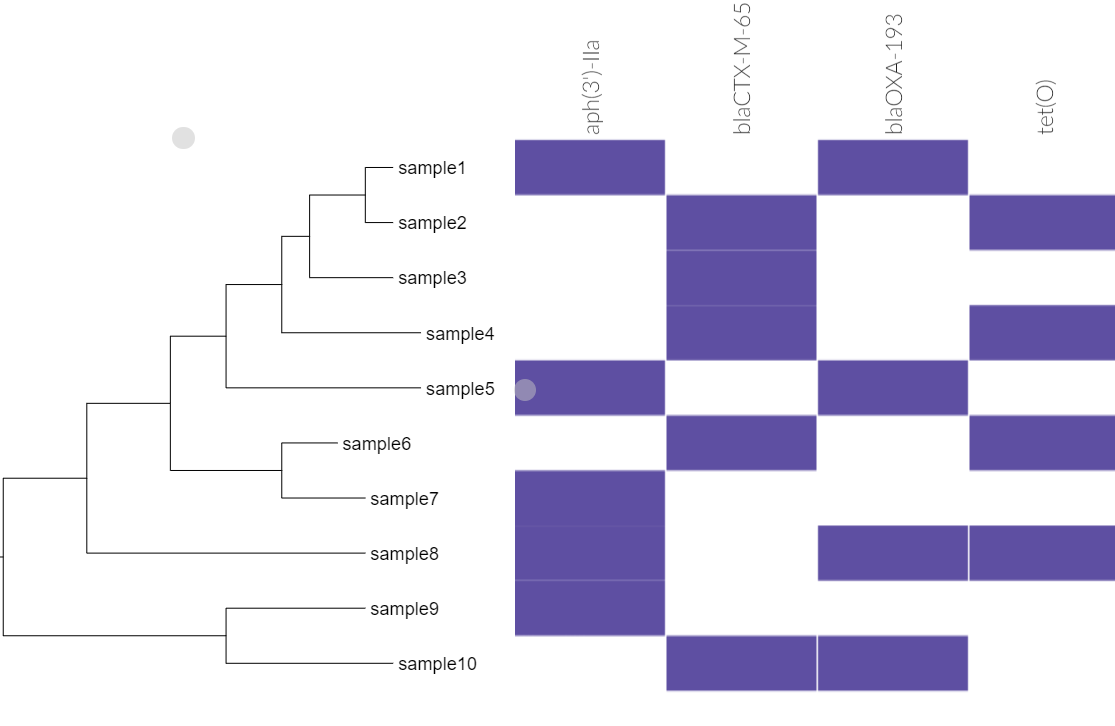

snippy_tree_wf | phandango_coloring | Boolean | Boolean variable that tells the data summary task and the reorder matrix task to include a suffix that enables consistent coloring on Phandango; by default, this suffix is not added. To add this suffix set this variable to true. | FALSE | Optional |
snippy_tree_wf | snippy_core_bed | File | User-provided bed file to mask out regions of the genome when creating multiple sequence alignments | Optional | |
snippy_tree_wf | snippy_core_cpu | Int | Number of CPUs to allocate to the task | 8 | Optional |
snippy_tree_wf | snippy_core_disk_size | Int | Amount of storage (in GB) to allocate to the task | 100 | Optional |
snippy_tree_wf | snippy_core_docker | String | The Docker container to use for the task | us-docker.pkg.dev/general-theiagen/staphb/snippy:4.6.0 | Optional |
snippy_tree_wf | snippy_core_memory | Int | Amount of memory/RAM (in GB) to allocate to the task | 16 | Optional |
snippy_tree_wf | snp_dists_docker | String | The Docker container to use for the task | us-docker.pkg.dev/general-theiagen/staphb/snp-dists:0.8.2 | Optional |
snippy_tree_wf | snp_sites_cpu | Int | Number of CPUs to allocate to the task | 1 | Optional |
snippy_tree_wf | snp_sites_disk_size | Int | Amount of storage (in GB) to allocate to the task | 100 | Optional |
snippy_tree_wf | snp_sites_docker | String | The Docker container to use for the task | us-docker.pkg.dev/general-theiagen/staphb/snp-sites:2.5.1 | Optional |
snippy_tree_wf | snp_sites_memory | Int | Amount of memory/RAM (in GB) to allocate to the task | 4 | Optional |
snippy_tree_wf | use_gubbins | Boolean | When "true", workflow removes recombination with gubbins tasks; when "false", gubbins is not used | TRUE | Optional |
snippy_variants_wf | base_quality | Int | Minimum quality for a nucleotide to be used in variant calling | 13 | Optional |
snippy_variants_wf | cpu | Int | Number of CPUs to allocate to the task | 4 | Optional |
snippy_variants_wf | docker | String | The Docker container to use for the task | us-docker.pkg.dev/general-theiagen/staphb/snippy:4.6.0 | Optional |
snippy_variants_wf | map_qual | Int | Minimum mapping quality to accept in variant calling | Optional | |
snippy_variants_wf | maxsoft | Int | Number of bases of alignment to soft-clip before discarding the alignment | Optional | |
snippy_variants_wf | memory | Int | Amount of memory/RAM (in GB) to allocate to the task | 16 | Optional |
snippy_variants_wf | min_coverage | Int | Minimum read coverage of a position to identify a mutation | 10 | Optional |
snippy_variants_wf | min_frac | Float | Minimum fraction of bases at a given position to identify a mutation | 0.9 | Optional |
snippy_variants_wf | min_quality | Int | Minimum VCF variant call "quality" | 100 | Optional |
snippy_variants_wf | query_gene | String | Indicate a particular gene of interest | Optional | |
version_capture | docker | String | The Docker container to use for the task | "us-docker.pkg.dev/general-theiagen/theiagen/alpine-plus-bash:3.20.0" | Optional |
version_capture | timezone | String | Set the time zone to get an accurate date of analysis (uses UTC by default) | Optional |
Workflow Tasks¶
For automatic reference selection by the workflow (optional):
Centroid (optional)
Centroid¶
Centroid selects the most central genome among a list of assemblies by computing pairwise mash distances. In Snippy_Streamline
, this centroid assembly is then used to find a closely related reference genome that can be used to generate the tree. In order to use Centroid
, should complete the samplenames
input.
Centroid Technical Details
Links | |
---|---|
Task | task_centroid.wdl |
Software Source Code | https://github.com/theiagen/centroid |
Software Documentation | https://github.com/theiagen/centroid |
Assembly_Fetch workflow (optional)
Assembly_Fetch¶
The Assembly_Fetch
workflow compares the centroid assembly with the RefSeq database to identify the closest reference and then downloads this assembly in FASTA format, and optionally also in GFF3 and/or GBFF format. The Reference database is for bacteria by default but this can be changed by adjusting the referenceseeker_db
input to the appropriate database. See the Assembly_Fetch workflow documentation for more information.
Call-Caching Disabled
If using Snippy_Streamline workflow (which runs the Assembly_Fetch workflow if no reference genome is provided by user) version 1.3.0 or higher, the call-caching feature of Terra has been DISABLED to ensure that the workflow is run from the beginning and data is downloaded fresh. Call-caching will not be enabled, even if the user checks the box ✅ in the Terra workflow interface.
For all cases:
Snippy_Variants workflow
Snippy_Variants¶
Snippy_Variants
aligns reads for each sample against the reference genome. As part of Snippy_Streamline
, the only output from this workflow is the snippy_variants_outdir_tarball
which is provided in the set-level data table. Please see the full documentation for Snippy_Variants for more information.
This task also extracts QC metrics from the Snippy output for each sample and saves them in per-sample TSV files (snippy_variants_qc_metrics
). These per-sample QC metrics include the following columns:
- samplename: The name of the sample.
- reads_aligned_to_reference: The number of reads that aligned to the reference genome.
- total_reads: The total number of reads in the sample.
- percent_reads_aligned: The percentage of reads that aligned to the reference genome.
- variants_total: The total number of variants detected between the sample and the reference genome.
- percent_ref_coverage: The percentage of the reference genome covered by reads with a depth greater than or equal to the
min_coverage
threshold (default is 10). - #rname: Reference sequence name (e.g., chromosome or contig name).
- startpos: Starting position of the reference sequence.
- endpos: Ending position of the reference sequence.
- numreads: Number of reads covering the reference sequence.
- covbases: Number of bases with coverage.
- coverage: Percentage of the reference sequence covered (depth ≥ 1).
- meandepth: Mean depth of coverage over the reference sequence.
- meanbaseq: Mean base quality over the reference sequence.
- meanmapq: Mean mapping quality over the reference sequence.
These per-sample QC metrics are then combined into a single file (snippy_combined_qc_metrics
). The combined QC metrics file includes the same columns as above for all samples. Note that the last set of columns (#rname
to meanmapq
) may repeat for each chromosome or contig in the reference genome.
QC Metrics for Phylogenetic Analysis
These QC metrics provide valuable insights into the quality and coverage of your sequencing data relative to the reference genome. Monitoring these metrics can help identify samples with low coverage, poor alignment, or potential issues that may affect downstream analyses
Snippy Variants Technical Details
Links | |
---|---|
Task | task_snippy_variants.wdl |
Software Source Code | Snippy on GitHub |
Software Documentation | Snippy on GitHub |
Snippy_Tree workflow
Snippy_Tree¶
A simplified version of Snippy_Tree
is used to build the phylogeny in the Snippy_Streamline
workflow. The tasks undertaken are exactly the same between both workflows, but the user inputs and outputs have been reduced for clarity and ease. Please see the full documentation for Snippy_Tree for more information.
In Snippy Streamline, the nucleotide substitution model used by gubbins will always be GTR+GAMMA.
Outputs¶
Variable | Type | Description |
---|---|---|
snippy_centroid_docker | String | Docker file used for Centroid |
snippy_centroid_fasta | File | FASTA file for the centroid sample |
snippy_centroid_mash_tsv | File | TSV file containing mash distances computed by centroid |
snippy_centroid_samplename | String | Name of the centroid sample |
snippy_centroid_version | String | Centroid version used |
snippy_cg_snp_matrix | File | CSV file of core genome pairwise SNP distances between samples, calculated from the final alignment |
snippy_concatenated_variants | File | The concatenated variants file |
snippy_combined_qc_metrics | File | Combined QC metrics file containing concatenated QC metrics from all samples. |
snippy_filtered_metadata | File | TSV recording the columns of the Terra data table that were used in the summarize_data task |
snippy_final_alignment | File | Final alignment (FASTA file) used to generate the tree (either after snippy alignment, gubbins recombination removal, and/or core site selection with SNP-sites) |
snippy_final_tree | File | Final phylogenetic tree produced by Snippy_Streamline |
snippy_gubbins_branch_stats | File | CSV file showing https://github.com/nickjcroucher/gubbins/blob/master/docs/gubbins_manual.md#output-statistics for each branch of the tree |
snippy_gubbins_docker | String | Docker file used for Gubbins |
snippy_gubbins_recombination_gff | File | Recombination statistics in GFF format; these can be viewed in Phandango against the phylogenetic tree |
snippy_gubbins_version | String | Gubbins version used |
snippy_iqtree2_docker | String | Docker file used for IQTree2 |
snippy_iqtree2_model_used | String | Nucleotide substitution model used by IQTree2 |
snippy_iqtree2_version | String | IQTree2 version used |
snippy_msa_snps_summary | File | CSV file showing https://github.com/nickjcroucher/gubbins/blob/master/docs/gubbins_manual.md#output-statistics for each branch of the tree |
snippy_ncbi_datasets_docker | String | Docker file used for NCBI datasets |
snippy_ncbi_datasets_version | String | NCBI datasets version used |
snippy_ref | File | Reference genome used by Snippy |
snippy_ref_metadata_json | File | Metadata associated with the refence genome used by Snippy, in JSON format |
snippy_referenceseeker_database | String | ReferenceSeeker database used |
snippy_referenceseeker_docker | String | Docker file used for ReferenceSeeker |
snippy_referenceseeker_top_hit_ncbi_accession | String | NCBI Accession for the top it identified by Assembly_Fetch |
snippy_referenceseeker_tsv | File | TSV file of the top hits between the query genome and the Reference Seeker database |
snippy_referenceseeker_version | String | ReferenceSeeker version used |
snippy_snp_dists_docker | String | Docker file used for SNP-dists |
snippy_snp_dists_version | String | SNP-dists version used |
snippy_snp_sites_docker | String | Docker file used for SNP-sites |
snippy_snp_sites_version | String | SNP-sites version used |
snippy_streamline_analysis_date | String | Date of workflow run |
snippy_streamline_version | String | Version of Snippy_Streamline used |
snippy_summarized_data | File | CSV presence/absence matrix generated by the summarize_data task (within Snippy_Tree workflow) from the list of columns provided |
snippy_tree_snippy_docker | String | Docker file used for Snippy in the Snippy_Tree subworkfow |
snippy_tree_snippy_version | String | Version of Snippy_Tree subworkflow used |
snippy_variants_outdir_tarball | Array[File] | A compressed file containing the whole directory of snippy output files. This is used when running Snippy_Tree |
snippy_variants_percent_reads_aligned | Float | Percentage of reads aligned to the reference genome |
snippy_variants_percent_ref_coverage | Float | Proportion of the reference genome covered by reads with a depth greater than or equal to the min_coverage threshold (default is 10). |
snippy_variants_snippy_docker | Array[String] | Docker file used for Snippy in the Snippy_Variants subworkfow |
snippy_variants_snippy_version | Array[String] | Version of Snippy_Tree subworkflow used |
snippy_wg_snp_matrix | File | CSV file of whole genome pairwise SNP distances between samples, calculated from the final alignment |
