Augur

Quick Facts

Workflow Type	Applicable Kingdom	Last Known Changes	Command-line Compatibility	Workflow Level	Dockstore
Phylogenetic Construction	Viral	v4.0.0	Yes	Sample-level, Set-level	Augur_Prep_PHB, Augur_PHB

Augur Workflows

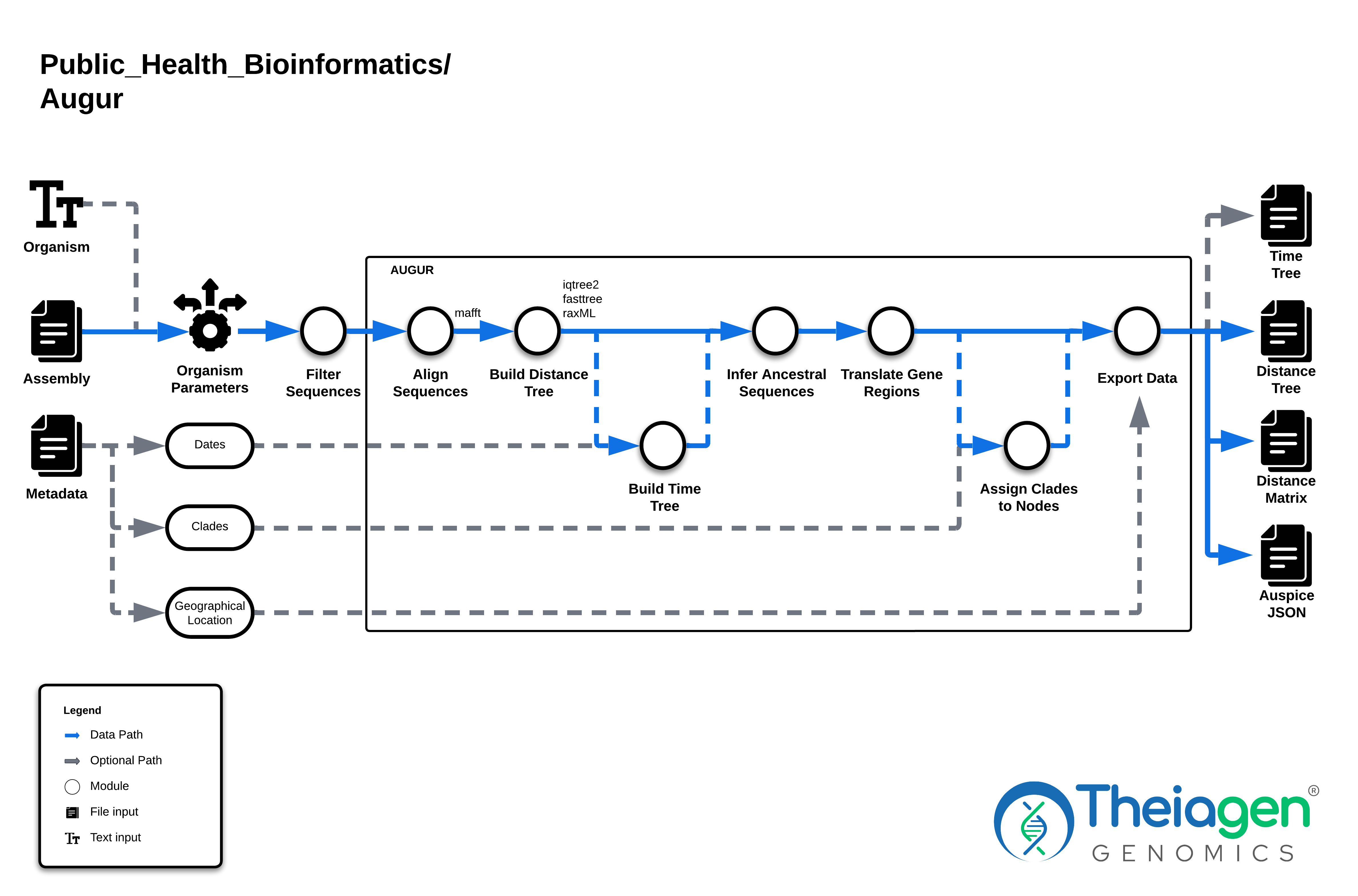

Augur Workflow Diagram

Helpful resources for epidemiological interpretation

CDC's COVID-19 Epidemiology Toolkit is a useful resource for learning more about genomic epidemiology. Some particularly relevant modules to the Augur workflows include:

• Module 1.3: How to read a phylogenetic tree
• Module 3.1: Getting started with Nextstrain (which includes Auspice)
• Module 3.4: Walking through Nextstrain trees

Genomic epidemiology is an important approach to understand and mitigate disease transmission. A critical step in viral genomic epidemiology is generating phylogenetic trees to explore the genetic relationship between viruses on a local, regional, national, or global scale. The Augur workflows enable viral phylogenetic analysis by generating phylogenetic trees from genome assemblies and incorporating metadata into a intuitive visual platform via Auspice.

Two workflows are offered: Augur_Prep_PHB and Augur_PHB. Augur_Prep_PHB prepares sample metadata to be visualized alongside the phylogenetic tree produced by Augur_PHB. Augur_PHB can be run without metadata to produce only a phylogenetic tree. If you want metadata incorporated in your final tree, these workflows must be run sequentially. The final outputs from Augur_PHB can be visualized in Auspice, which is the recommended platform. Alternative tree visualization platforms can also be used, though these may not support all metadata features.

Augur_Prep_PHB

The Augur_Prep_PHB workflow was written to prepare individual sample assemblies and their metadata for inclusion in Augur_PHB analysis. The optional metadata inputs include collection date information (in YYYY-MM-DD format), clade information (like nextclade clade and/or pango lineage), and geographical information.

This workflow runs on the sample level, and takes assembly FASTA files and associated metadata formatted in a data table. FASTA files may be generated with one of the TheiaCoV/TheiaViral Characterization workflows and should adhere to quality control guidelines, (e.g. QC guidelines produced by PHA4GE).

How to prepare metadata

If you are running this workflow on Terra, we recommend carefully preparing metadata in a TSV file that will be uploaded to the same Terra datatable that contains the sample genetic information. An example of a correctly formatted TSV file can be found in this example. A few important considerations are:

• Please always include the date information in YYYY-MM-DD format. Other date formats are incompatible with Augur. You can specify unknown dates or month by replacing the respective values by XX (e.g. 2013-01-XX or 2011-XX-XX), while completely unknown dates can be shown with 20XX-XX-XX (which does not restrict the sequence to being in the 21st century - they could be earlier). Alternatively, reduced precision format can also be used (e.g. 2018, 2018-03).
  • Because Excel will automatically change the date formatting, we recommend not opening or preparing your meta data file in Excel. If the metadata is already in Excel, or you decide to prepare it in Excel, we recommend using another program to correct the dates afterwards (and be caution if you open it in Excel again!).
• Different levels of geographical information can be passed to Augur. A latitude and longitude file is provided by default by Theiagen, which mirrors what can be found here. Just ensure that your spelling matches what is in the file exactly or alternatively provide your own. Augur_Prep supports the following levels:
  • region - Lowest-level resolution, used often for continents (e.g.: europe, asia, north america)
  • country - Denotes the country where the sample originated (e.g.: Argentina, Japan, USA)
  • divisions - Denotes divisions, or states, or sometimes cities, within the country (e.g.: California, Colorado, Cork)
  • location - Highest-level resolution, often used for custom latitude and longitude for futher detail on divisions, like cities within states. Just ensure that this level is provided in either the default latitude and longitude file or in a custom one.
• Optional clade information, such the one assigned by Nextclade.
• Optional Pangolin lineage information for SARS-CoV-2 samples.

Augur_Prep Inputs

Terra Task Name	Variable	Type	Description	Default Value	Terra Status
augur_prep	assembly	File	The assembly file for your sample in FASTA format		Required
augur_prep	clade	String	Clade membership metadata		Optional
augur_prep	collection_date	String	Collection date of the sample		Optional
augur_prep	country	String	Country where sample was collected		Optional
augur_prep	division	String	Sub-national location (e.g. state/province) where sample was collected		Optional
augur_prep	location	String	Sub-divisional location (e.g. county) where sample was collected		Optional
augur_prep	pango_lineage	String	The Pangolin lineage of the sample		Optional
augur_prep	region	String	Continental/regional location where sample was collected		Optional
prep_augur_metadata	cpu	Int	Number of CPUs to allocate to the task	1	Optional
prep_augur_metadata	disk_size	Int	Amount of storage (in GB) to allocate to the task	10	Optional
prep_augur_metadata	docker	String	The Docker container to use for the task	us-docker.pkg.dev/general-theiagen/theiagen/utility:1.1	Optional
prep_augur_metadata	memory	Int	Amount of memory/RAM (in GB) to allocate to the task	3	Optional
prep_augur_metadata	organism	String	The organism to be analyzed in Augur; options: "sars-cov-2", "flu", "MPXV", "rsv-a", "rsv-b"	sars-cov-2	Optional
version_capture	docker	String	The Docker container to use for the task	us-docker.pkg.dev/general-theiagen/theiagen/alpine-plus-bash:3.20.0	Optional
version_capture	timezone	String	Set the time zone to get an accurate date of analysis (uses UTC by default)		Optional

Augur_Prep Outputs

Variable	Type	Description
augur_metadata	File	TSV file of the metadata provided as input to the workflow in the proper format for Augur analysis
augur_prep_phb_analysis_date	String	Date of analysis
augur_prep_phb_version	String	Version of the Public Health Bioinformatics (PHB) repository used

Augur_PHB

Augur is a bioinformatics toolkit to track evolution from sequence data, ingesting sequences and metadata such as dates and sampling locations, filtering the data, aligning the sequences, infering a tree, and export the results in a format that can be visualized by Auspice. This is the tool behind Nextrain's builds available for a large collection of viral organisms.

Before getting started

Phylogenetic inference requires careful planning, quality control of sequences, and metadata curation. You may have to generate phylogenies multiple times by running the Augur_PHB workflow, with several iterations of assessing results and amending inputs, in order to generate a final tree with sufficient diversity and high-quality data of interest. Theiagen's Introduction to Phylogenetics is one resource to give you the necessary information on the considerations you'll need to have before performing this type of analysis.

Augur_PHB takes as input a set of assembly/consensus files (FASTA format), an optional viral organism designation, and an optional sample metadata files (TSV format) that have been formatted via the Augur_Prep_PHB workflow. Augur_PHB runs Augur to generate a phylogenetic tree following the construction of a SNP distance matrix and alignment. Provided metadata will be used to refine the final tree and incorporated into the Auspice-formatted tree visual.

Augur Inputs

Sample diversity and tree building

Before attempting a phylogenetic tree, you must ensure that the input FASTAs meet quality-control metrics. Sets of FASTAs with highly discordant quality metrics may result in the inaccurate inference of genetic relatedness.

There must be some sequence diversity among the set of input assemblies. If insufficient diversity is present, it may be necessary to add a more divergent sequence to the set of samples to be analyzed.

Some inputs will automatically bypass or trigger modules, such as populating alignment_fasta, which bypasses alignment. Clade-defining mutations can be automatically extracted if the "clade_membership" metadata field is provided and the extract_clade_mutations optional input is set to true.

Any metadata present in the final JSON file for Auspice visualization is determined by what metadata was provided by the user. If the sample_metadata_tsvs optional input parameter is not provided, the final tree visual will only include the distance tree. If metadata was provided, different metadata fields will trigger different steps: date information will trigger the refinement of the distance tree into a time tree; clade information will be assigned to the tree nodes; geographical information will be represented in the Auspice visual within a map. The following figure illustrates this logic.

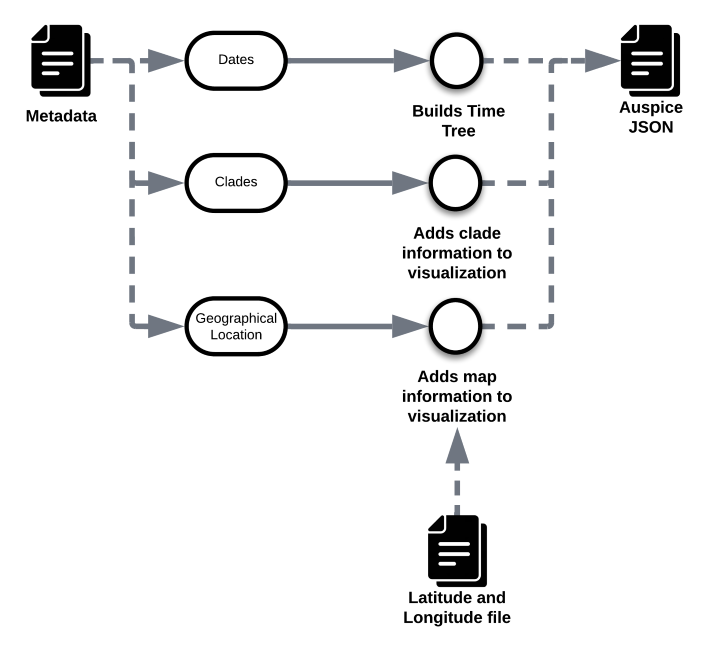

Augur Metadata Conditionals

A Note on Optional Inputs

Defaults change based on the specified organism input

Default values that mimic the Nextstrain builds for the following organisms have been preselected:

• Flu ("flu"), which also requires the following two inputs:
  • flu_segment ("HA" or "NA")
  • flu_subtype ("H1N1", "H3N2", "Victoria", "Yamagata", or "H5N1")
• RSV-A ("rsv-a")
• RSV-B ("rsv-b")
• Mpox ("mpox")
• SARS-CoV-2 (default; "sars-cov-2")

View these default parameters in the relevant toggle block below.

organism_parameters: Setting default values for specific organisms

Organism Parameters acquires and propagates default files and variable values for specific organisms.

Default values for SARS-CoV-2

• min_num_unambig = 27000
• clades_tsv = "gs://theiagen-public-resources-rp/reference_data/viral/sars-cov-2/sc2_clades_20251008.tsv"
• lat_longs_tsv = "gs://theiagen-public-resources-rp/reference_data/viral/sars-cov-2/sc2_lat_longs_20251008.tsv"
• reference_fasta = "gs://theiagen-public-resources-rp/reference_data/viral/sars-cov-2/MN908947.fasta"
• reference_genbank = "gs://theiagen-public-resources-rp/reference_data/viral/sars-cov-2/sc2_reference_seq_20251008.gb"
• auspice_config = "gs://theiagen-public-resources-rp/reference_data/viral/sars-cov-2/sc2_auspice_config_20251008.json"
• min_date = 2020.0
• pivot_interval = 1
• pivot_interval_units = "weeks"
• narrow_bandwidth = 0.05
• proportion_wide = 0.0

Default values for Flu

• lat_longs_tsv = "gs://theiagen-public-resources-rp/reference_data/viral/flu/lat_longs.tsv"
• min_num_unambig = 900
• min_date = 2020.0
• pivot_interval = 1
• narrow_bandwidth = 0.1666667
• proportion_wide = 0.0

H1N1

• auspice_config = "gs://theiagen-public-resources-rp/reference_data/viral/flu/auspice_config_h1n1pdm.json"
• HA
  • reference_fasta = "gs://theiagen-public-resources-rp/reference_data/viral/flu/reference_h1n1pdm_ha.gb"
  • clades_tsv = "gs://theiagen-public-resources-rp/reference_data/viral/flu/clades_h1n1pdm_ha.tsv"
• NA
  • reference_fasta = "gs://theiagen-public-resources-rp/reference_data/viral/flu/reference_h1n1pdm_na.gb"

H3N2

• auspice_config = "gs://theiagen-public-resources-rp/reference_data/viral/flu/auspice_config_h3n2.json"
• HA
  • reference_fasta = "gs://theiagen-public-resources-rp/reference_data/viral/flu/reference_h3n2_ha.gb"
  • clades_tsv = "gs://theiagen-public-resources-rp/reference_data/viral/flu/clades_h3n2_ha.tsv"
• NA
  • reference_fasta = "gs://theiagen-public-resources-rp/reference_data/viral/flu/reference_h3n2_na.gb"

Victoria

• auspice_config = "gs://theiagen-public-resources-rp/reference_data/viral/flu/auspice_config_vic.json"
• HA
  • reference_fasta = "gs://theiagen-public-resources-rp/reference_data/viral/flu/reference_vic_ha.gb"
  • clades_tsv = "gs://theiagen-public-resources-rp/reference_data/viral/flu/clades_vic_ha.tsv"
• NA
  • reference_fasta = "gs://theiagen-public-resources-rp/reference_data/viral/flu/reference_vic_na.gb"

Yamagata

• auspice_config = "gs://theiagen-public-resources-rp/reference_data/viral/flu/auspice_config_yam.json"
• HA
  • reference_fasta = "gs://theiagen-public-resources-rp/reference_data/viral/flu/reference_yam_ha.gb"
  • clades_tsv = "gs://theiagen-public-resources-rp/reference_data/viral/flu/clades_yam_ha.tsv"
• NA
  • reference_fasta = "gs://theiagen-public-resources-rp/reference_data/viral/flu/reference_yam_na.gb"

H5N1

• auspice_config = "gs://theiagen-public-resources-rp/reference_data/viral/flu/auspice_config_h5n1.json"
• HA
  • reference_fasta = "gs://theiagen-public-resources-rp/reference_data/viral/flu/reference_h5n1_ha.gb"
  • clades_tsv = "gs://theiagen-public-resources-rp/reference_data/viral/flu/h5nx-clades.tsv"

Default values for MPXV

• min_num_unambig = 150000
• clades_tsv = "gs://theiagen-public-resources-rp/reference_data/viral/mpox/mpox_clades.tsv"
• lat_longs_tsv = "gs://theiagen-public-resources-rp/reference_data/viral/flu/lat_longs.tsv"
• reference_fasta = "gs://theiagen-public-resources-rp/reference_data/viral/mpox/NC_063383.1.reference.fasta"
• reference_genbank = "gs://theiagen-public-resources-rp/reference_data/viral/mpox/NC_063383.1_reference.gb"
• auspice_config = "gs://theiagen-public-resources-rp/reference_data/viral/mpox/mpox_auspice_config_mpxv.json"
• min_date = 2020.0
• pivot_interval = 1
• narrow_bandwidth = 0.1666667
• proportion_wide = 0.0

Default values for RSV-A

• min_num_unambig = 10850
• clades_tsv = "gs://theiagen-public-resources-rp/reference_data/viral/rsv/rsv_a_clades.tsv"
• lat_longs_tsv = "gs://theiagen-public-resources-rp/reference_data/viral/flu/lat_longs.tsv"
• reference_fasta = "gs://theiagen-public-resources-rp/reference_data/viral/rsv/reference_rsv_a.EPI_ISL_412866.fasta"
• reference_genbank = ""gs://theiagen-public-resources-rp/reference_data/viral/rsv/reference_rsv_a.gb"
• auspice_config = ""gs://theiagen-public-resources-rp/reference_data/viral/rsv/rsv_auspice_config.json"
• min_date = 2020.0
• pivot_interval = 1
• narrow_bandwidth = 0.1666667
• proportion_wide = 0.0

Default values for RSV-B

• min_num_unambig = 10850
• clades_tsv = "gs://theiagen-public-resources-rp/reference_data/viral/rsv/rsv_b_clades.tsv"
• lat_longs_tsv = "gs://theiagen-public-resources-rp/reference_data/viral/flu/lat_longs.tsv"
• reference_fasta = "gs://theiagen-public-resources-rp/reference_data/viral/rsv/reference_rsv_b.EPI_ISL_1653999.fasta"
• reference_genbank = ""gs://theiagen-public-resources-rp/reference_data/viral/rsv/reference_rsv_b.gb"
• auspice_config = ""gs://theiagen-public-resources-rp/reference_data/viral/rsv/rsv_auspice_config.json"
• min_date = 2020.0
• pivot_interval = 1
• narrow_bandwidth = 0.1666667
• proportion_wide = 0.0

Organism Parameters Technical Details

	Links
Task	wf_organism_parameters.wdl

Running Augur_PHB on custom organsisms

For non-default organisms (listed above), several optional inputs are required to guarantee workflow functionality

Task	Input	Description
augur	reference_fasta	Reference sequence in FASTA format.
augur	reference_genbank	Reference sequence in GenBank format.
augur	organism	Name of expected organism.
augur	min_num_unambig	Minimum number of called bases in genome to pass prefilter.
augur	lat_longs_tsv	Tab-delimited file of geographic location names with corresponding latitude and longitude values. Only necessary if geographical information is in the metadata; must follow this format
augur	clades_tsv	TSV file containing clade mutation positions in four columns. Only necessary if clade information is in the metadata.

In the inputs table below, these fields have both the "Required" and "Optional" tags.

There are many optional user inputs. For more information regarding these optional inputs, please view Nextstrain's detailed documentation on Augur

Terra Task Name	Variable	Type	Description	Default Value	Terra Status
augur	assembly_fastas	Array[File]+	The assembly files for your samples in FASTA format		Required
augur	build_name	String	Name to give to the Augur build		Required
augur	clades_tsv	File	TSV file containing clade mutation positions in four columns	Defaults are organism-specific. Please find default values for all organisms (and for Flu - their respective genome segments and subtypes) here: https://github.com/theiagen/public_health_bioinformatics/blob/main/workflows/utilities/wf_organism_parameters.wdl. For an organism without set defaults, an empty clades file is provided to prevent workflow failure, "gs://theiagen-public-resources-rp/empty_files/minimal-clades.tsv", but will not be as useful as an organism specific clades file.	Optional, Required
augur	flu_subtype	String	Required if organism = "flu". The subtype of the flu samples being analyzed; options: "H1N1", "H3N2", "Victoria", "Yamagata", "H5N1"		Optional, Required
augur	reference_fasta	File	The reference FASTA file used to align the genomes and build the trees	Defaults are organism-specific. Please find default values for all organisms (and for Flu - their respective genome segments and subtypes) here: https://github.com/theiagen/public_health_bioinformatics/blob/main/workflows/utilities/wf_organism_parameters.wdl. For an organism without set defaults, a reference fasta file must be provided otherwise the workflow fails.	Optional, Required
augur	reference_genbank	File	The GenBank .gb file for the same reference genome used for the reference_fasta	Defaults are organism-specific. Please find default values for all organisms (and for Flu - their respective genome segments and subtypes) here: https://github.com/theiagen/public_health_bioinformatics/blob/main/workflows/utilities/wf_organism_parameters.wdl. For an organism without set defaults, a reference genbank file must be provided otherwise the workflow fails.	Optional, Required
augur	alignment_fasta	File	The alignment fasta file in Augur		Optional
augur	augur_id_column	String	Column name of sequence IDs	strain	Optional
augur	augur_trait_columns	String	Comma-separated list of columns to use for trait analysis in Augur		Optional
augur	auspice_config	File	Auspice config file for customizing visualizations; takes priority over the other customization values available for augur_export	Defaults are organism-specific. Please find default values for all organisms (and for Flu - their respective genome segments and subtypes) here: https://github.com/theiagen/public_health_bioinformatics/blob/main/workflows/utilities/wf_organism_parameters.wdl. For an organism without set defaults, a minimal auspice config file is provided to prevent workflow failure, "gs://theiagen-public-resources-rp/empty_files/minimal-auspice-config.json", but will not be as useful as an organism specific config file.	Optional
augur	extract_clade_mutations	Boolean	Generate a "clades.tsv" using "clade_membership" column metadata (overrides clades_tsv)	False	Optional
augur	flu_segment	String	Required if organism = "flu". The name of the segment to be analyzed; options: "HA" or "NA"	HA	Optional
augur	lat_longs_tsv	File	Tab-delimited file of geographic location names with corresponding latitude and longitude values	Defaults are organism-specific. Please find default values for all organisms (and for Flu - their respective genome segments and subtypes) here: https://github.com/theiagen/public_health_bioinformatics/blob/main/workflows/utilities/wf_organism_parameters.wdl. For an organism without set defaults, a minimal lat-long file is provided to prevent workflow failure, "gs://theiagen-public-resources-rp/empty_files/minimal-lat-longs.tsv", but will not be as useful as a detailed lat-longs file covering all the locations for the samples to be visualized.	Optional
augur	midpoint_root_tree	Boolean	Boolean variable that will instruct the workflow to reroot the tree at the midpoint	True	Optional
augur	min_date	Float	Minimum date to begin filtering or frequencies calculations	Defaults are organism-specific. Please find default values for all organisms (and for Flu - their respective genome segments and subtypes) here: https://github.com/theiagen/public_health_bioinformatics/blob/main/workflows/utilities/wf_organism_parameters.wdl. For an organism without set defaults, the default value is 0.0	Optional
augur	min_num_unambig	Int	Minimum number of called bases in genome to pass prefilter	Defaults are organism-specific. Please find default values for all organisms (and for Flu - their respective genome segments and subtypes) here: https://github.com/theiagen/public_health_bioinformatics/blob/main/workflows/utilities/wf_organism_parameters.wdl. For an organism without set defaults, the default value is 0	Optional
augur	narrow_bandwidth	Float	The bandwidth for the narrow KDE	0.08333	Optional
augur	organism	String	Organism used to preselect default values; options: "sars-cov-2", "flu", "mpxv", "rsv-a", "rsv-b"	sars-cov-2	Optional
augur	outgroup_root	String	Tip name to root phylogenetic tree upon (overrides midpoint root)		Optional
augur	pivot_interval	Int	Number of units between pivots	3	Optional
augur	proportion_wide	Float	The proportion of the wide bandwidth to use in the KDE mixture model	0.2	Optional
augur	remove_reference	Boolean	Whether or not to remove the reference in Augur	False	Optional
augur	sample_metadata_tsvs	Array[File]	An array of the metadata files produced in Augur_Prep_PHB		Optional
augur_align	cpu	Int	Number of CPUs to allocate to the task	64	Optional
augur_align	disk_size	Int	Amount of storage (in GB) to allocate to the task	750	Optional
augur_align	docker	String	The Docker container to use for the task	us-docker.pkg.dev/general-theiagen/staphb/augur:31.5.0	Optional
augur_align	fill_gaps	Boolean	If true, gaps represent missing data rather than true indels and so are replaced by N after aligning.	False	Optional
augur_align	memory	Int	Amount of memory/RAM (in GB) to allocate to the task	128	Optional
augur_ancestral	cpu	Int	Number of CPUs to allocate to the task	4	Optional
augur_ancestral	disk_size	Int	Amount of storage (in GB) to allocate to the task	50	Optional
augur_ancestral	docker	String	The Docker container to use for the task	us-docker.pkg.dev/general-theiagen/staphb/augur:31.5.0	Optional
augur_ancestral	infer_ambiguous	Boolean	If true, infer nucleotides and ambiguous sites and replace with most likely	False	Optional
augur_ancestral	inference	String	Calculate joint or marginal maximum likelihood ancestral sequence states; options: "joint", "marginal"	joint	Optional
augur_ancestral	keep_ambiguous	Boolean	If true, do not infer nucleotides at ambiguous (N) sides	False	Optional
augur_ancestral	keep_overhangs	Boolean	If true, do not infer nucleotides for gaps on either side of the alignment	False	Optional
augur_ancestral	memory	Int	Amount of memory/RAM (in GB) to allocate to the task	50	Optional
augur_clades	cpu	Int	Number of CPUs to allocate to the task	1	Optional
augur_clades	disk_size	Int	Amount of storage (in GB) to allocate to the task	50	Optional
augur_clades	docker	String	The Docker container to use for the task	us-docker.pkg.dev/general-theiagen/staphb/augur:31.5.0	Optional
augur_clades	memory	Int	Amount of memory/RAM (in GB) to allocate to the task	2	Optional
augur_export	colors_tsv	File	Custom color defintiions, one per line in the format TRAIT_TYPE\tTRAIT_VALUE\tHEX_CODE		Optional
augur_export	cpu	Int	Number of CPUs to allocate to the task	4	Optional
augur_export	description_md	File	Markdown file with description of build and/or acknowledgements		Optional
augur_export	disk_size	Int	Amount of storage (in GB) to allocate to the task	100	Optional
augur_export	docker	String	The Docker container to use for the task	us-docker.pkg.dev/general-theiagen/staphb/augur:31.5.0	Optional
augur_export	include_root_sequence	Boolean	Export an additional JSON containing the root sequence used to identify mutations	False	Optional
augur_export	memory	Int	Amount of memory/RAM (in GB) to allocate to the task	64	Optional
augur_export	title	String	The title to be displayed by auspice		Optional
augur_refine	branch_length_inference	String	Branch length mode of timetree to use; options: "auto", "joint", "marginal", "input"	auto	Optional
augur_refine	clock_filter_iqd	Int	Remove tips that deviate more than n_iqd interquartile ranges from the root-to-tip vs time regression	4	Optional
augur_refine	clock_rate	Float	Fixed clock rate to use for time tree calculations		Optional
augur_refine	clock_std_dev	Float	Standard deviation of the fixed clock_rate estimate		Optional
augur_refine	coalescent	String	Coalescent time scale in units of inverse clock rate (float), optimize as scalar ("opt") or skyline ("skyline")		Optional
augur_refine	covariance	Boolean	If true, account for covariation when estimating rates and/or rerooting	True	Optional
augur_refine	cpu	Int	Number of CPUs to allocate to the task	2	Optional
augur_refine	date_confidence	Boolean	If true, calculate confidence intervals for node dates	True	Optional
augur_refine	date_inference	String	Assign internal nodes to their marginally most likely dates; options: "joint", "marginal"	marginal	Optional
augur_refine	disk_size	Int	Amount of storage (in GB) to allocate to the task	100	Optional
augur_refine	divergence_units	String	Units in which sequence divergences is exported; options: "mutations" or "mutations-per-site"	mutations	Optional
augur_refine	docker	String	The Docker container to use for the task	us-docker.pkg.dev/general-theiagen/staphb/augur:31.5.0	Optional
augur_refine	gen_per_year	Int	Number of generations per year	50	Optional
augur_refine	keep_polytomies	Boolean	If true, don't attempt to resolve polytomies	False	Optional
augur_refine	keep_root	Boolean	If true, do not reroot the tree; use it as-is (overrides anything specified by root)	True	Optional
augur_refine	memory	Int	Amount of memory/RAM (in GB) to allocate to the task	50	Optional
augur_refine	precision	Int	Precision used by TreeTime to determine the number of grid points that are used for the evaluation of the branch length interpolation objects. Values range from 0 (rough) to 3 (ultra fine) and default to 'auto'	auto'	Optional
augur_refine	root	String	Rooting mechanism; options: "best", "least-squares", "min_dev", "oldest", etc.		Optional
augur_traits	cpu	Int	Number of CPUs to allocate to the task	4	Optional
augur_traits	disk_size	Int	Amount of storage (in GB) to allocate to the task	100	Optional
augur_traits	docker	String	The Docker container to use for the task	us-docker.pkg.dev/general-theiagen/staphb/augur:31.5.0	Optional
augur_traits	memory	Int	Amount of memory/RAM (in GB) to allocate to the task	30	Optional
augur_traits	metadata_id_columns	String	The names of possible metadata columns containing identifier information, ordered by priority	('strain', 'name)	Optional
augur_traits	weights	File	a dictionary of key/value mappings in JSON format used to weight KDE tip frequencies		Optional
augur_translate	cpu	Int	Number of CPUs to allocate to the task	1	Optional
augur_translate	disk_size	Int	Amount of storage (in GB) to allocate to the task	50	Optional
augur_translate	docker	String	The Docker container to use for the task	us-docker.pkg.dev/general-theiagen/staphb/augur:31.5.0	Optional
augur_translate	genes	File	A file containing a list of genes to translate (from nucleotides to amino acids)		Optional
augur_translate	memory	Int	Amount of memory/RAM (in GB) to allocate to the task	32	Optional
augur_tree	cpu	Int	Number of CPUs to allocate to the task	64	Optional
augur_tree	disk_size	Int	Amount of storage (in GB) to allocate to the task	750	Optional
augur_tree	docker	String	The Docker container to use for the task	us-docker.pkg.dev/general-theiagen/staphb/augur:31.5.0	Optional
augur_tree	exclude_sites	File	File of one-based sites to exclude for raw tree building (BED format in .bed files, DRM format in tab-delimited files, or one position per line)		Optional
augur_tree	memory	Int	Amount of memory/RAM (in GB) to allocate to the task	32	Optional
augur_tree	method	String	The method used to build the tree. Options: "fasttree", "raxml", "iqtree" (default)	iqtree	Optional
augur_tree	override_default_args	Boolean	If true, override default tree builder arguments instead of augmenting them	False	Optional
augur_tree	substitution_model	String	The substitution model to use; only available for iqtree. Specify "auto" to run ModelTest; model options can be found here	GTR	Optional
augur_tree	tree_builder_args	String	Additional tree builder arguments either augmenting or overriding the default arguments. FastTree defaults: "-nt -nosupport". RAxML defaults: "-f d -m GTRCAT -c 25 -p 235813". IQ-TREE defaults: "-ninit 2 -n 2 -me 0.05 -nt AUTO -redo"		Optional
cat_files	cpu	Int	Number of CPUs to allocate to the task	2	Optional
cat_files	disk_size	Int	Amount of storage (in GB) to allocate to the task	100	Optional
cat_files	docker_image	String	The Docker container to use for the task	us-docker.pkg.dev/general-theiagen/theiagen/utility:1.1	Optional
cat_files	memory	Int	Amount of memory/RAM (in GB) to allocate to the task	8	Optional
clade_extraction_task	allow_missing_tips	Boolean	Generate clades if metadata is missing for some tips	True	Optional
clade_extraction_task	cpu	Int	Number of CPUs to allocate to the task	1	Optional
clade_extraction_task	disk_size	Int	Amount of storage (in GB) to allocate to the task	10	Optional
clade_extraction_task	docker	String	Docker image to use for the task	us-docker.pkg.dev/general-theiagen/theiagen/extract_clade_mutations:0.0.1	Optional
clade_extraction_task	memory	Int	Amount of memory (in GB) to allocate to the task	4	Optional
clade_extraction_task	skip_singleton_clades	Boolean	Skip extracting sequence signatures for clades with a single tip	True	Optional
fasta_to_ids	cpu	Int	Number of CPUs to allocate to the task	1	Optional
fasta_to_ids	disk_size	Int	Amount of storage (in GB) to allocate to the task	375	Optional
fasta_to_ids	docker	String	The Docker container to use for the task	ubuntu	Optional
fasta_to_ids	memory	Int	Amount of memory/RAM (in GB) to allocate to the task	1	Optional
filter_sequences_by_length	cpu	Int	Number of CPUs to allocate to the task	1	Optional
filter_sequences_by_length	disk_size	Int	Amount of storage (in GB) to allocate to the task	300	Optional
filter_sequences_by_length	docker	String	The Docker container to use for the task	us-docker.pkg.dev/general-theiagen/broadinstitute/viral-core:2.1.33	Optional
filter_sequences_by_length	memory	Int	Amount of memory/RAM (in GB) to allocate to the task	1	Optional
mutation_context	cpu	Int	Number of CPUs to allocate to the task	1	Optional
mutation_context	disk_size	Int	Amount of storage (in GB) to allocate to the task	50	Optional
mutation_context	docker	String	The Docker container to use for the task	us-docker.pkg.dev/general-theiagen/theiagen/nextstrain-mpox-mutation-context:2024-06-27	Optional
mutation_context	memory	Int	Amount of memory/RAM (in GB) to allocate to the task	4	Optional
organism_parameters	flu_genoflu_genotype	String	Internal component, do not modify	N/A	Optional
organism_parameters	gene_locations_bed_file	File	Use to provide locations of interest where average coverage will be calculated	Default provided for SARS-CoV-2 ("gs://theiagen-public-resources-rp/reference_data/viral/sars-cov-2/sc2_gene_locations.bed") and mpox ("gs://theiagen-public-resources-rp/reference_data/viral/mpox/mpox_gene_locations.bed")	Optional
organism_parameters	genome_length_input	Int	Use to specify the expected genome length; provided by default for all supported organisms	Default provided for SARS-CoV-2 (29903), mpox (197200), WNV (11000), flu (13000), RSV-A (16000), RSV-B (16000), HIV (primer versions 1 [9181] and 2 [9840])	Optional
organism_parameters	hiv_primer_version	String	The version of HIV primers used. Options are https://github.com/theiagen/public_health_bioinformatics/blob/main/workflows/utilities/wf_organism_parameters.wdl#L156 and https://github.com/theiagen/public_health_bioinformatics/blob/main/workflows/utilities/wf_organism_parameters.wdl#L164. This input is ignored if provided for TheiaCoV_Illumina_SE and TheiaCoV_ClearLabs	v1	Optional
organism_parameters	kraken_target_organism_input	String	The organism whose abundance the user wants to check in their reads. This should be a proper taxonomic name recognized by the Kraken database.	Default provided for mpox (Monkeypox virus), WNV (West Nile virus), and HIV (Human immunodeficiency virus 1)	Optional
organism_parameters	nextclade_dataset_name_input	String	NextClade organism dataset name	Defaults are organism-specific. Please find default values for all organisms (and for Flu - their respective genome segments and subtypes) here: https://github.com/theiagen/public_health_bioinformatics/blob/main/workflows/utilities/wf_organism_parameters.wdl. For an organism without set defaults, the default is "NA".	Optional
organism_parameters	nextclade_dataset_tag_input	String	NextClade organism dataset tag	Defaults are organism-specific. Please find default values for all organisms (and for Flu - their respective genome segments and subtypes) here: https://github.com/theiagen/public_health_bioinformatics/blob/main/workflows/utilities/wf_organism_parameters.wdl. For an organism without set defaults, the default is "NA".	Optional
organism_parameters	pangolin_docker_image	String	The Docker container to use for the task	us-docker.pkg.dev/general-theiagen/staphb/pangolin:4.3.1-pdata-1.34	Optional
organism_parameters	primer_bed_file	File	The bed file containing the primers used when sequencing was performed	REQUIRED FOR SARS-CoV-2, MPOX, WNV, RSV-A & RSV-B. Provided by default only for HIV primer versions 1 ("gs://theiagen-public-resources-rp/reference_data/viral/hiv/HIV-1_v1.0.primer.hyphen.bed" and 2 ("gs://theiagen-public-resources-rp/reference_data/viral/hiv/HIV-1_v2.0.primer.hyphen400.1.bed")	Optional
organism_parameters	reference_gff_file	File	Reference GFF file for the organism being analyzed	Default provided for mpox ("gs://theiagen-public-resources-rp/reference_data/viral/mpox/Mpox-MT903345.1.reference.gff3") and HIV (primer versions 1 ["gs://theiagen-public-resources-rp/reference_data/viral/hiv/NC_001802.1.gff3"] and 2 ["gs://theiagen-public-resources-rp/reference_data/viral/hiv/AY228557.1.gff3"])	Optional
organism_parameters	vadr_max_length	Int	Maximum length for the fasta-trim-terminal-ambigs.pl VADR script	Default provided for SARS-CoV-2 (30000), mpox (210000), WNV (11000), flu (0), RSV-A (15500) and RSV-B (15500).	Optional
organism_parameters	vadr_mem	Int	Amount of memory/RAM (in GB) to allocate to the task	32 (RSV-A, RSV-B, WNV) and 16 (all other TheiaCoV organisms)	Optional
organism_parameters	vadr_model	File	Path to the a tar + gzipped VADR model file	gs://theiagen-public-resources-rp/reference_data/databases/vadr_models/vadr-models-sarscov2-1.3-2.tar.gz	Optional
organism_parameters	vadr_options	String	Options for the v-annotate.pl VADR script	--mkey sarscov2 --glsearch -s -r --nomisc --lowsim5seq 6 --lowsim3seq 6 --alt_fail lowscore,insertnn,deletinn --noseqnamemax --out_allfasta	Optional
organism_parameters	vadr_skip_length	Int	Minimum assembly length (unambiguous) to run VADR	10000	Optional
reorder_matrix	cpu	Int	Number of CPUs to allocate to the task	1	Optional
reorder_matrix	disk_size	Int	Amount of storage (in GB) to allocate to the task	100	Optional
reorder_matrix	docker	String	The Docker container to use for the task	us-docker.pkg.dev/general-theiagen/staphb/mykrobe:0.12.1	Optional
reorder_matrix	memory	Int	Amount of memory/RAM (in GB) to allocate to the task	2	Optional
reorder_matrix	phandango_coloring	Boolean	Whether or not Phandango coloring will color all items from the same column the same	False	Optional
snp_dists	cpu	Int	Number of CPUs to allocate to the task	1	Optional
snp_dists	disk_size	Int	Amount of storage (in GB) to allocate to the task	50	Optional
snp_dists	docker	String	The Docker container to use for the task	us-docker.pkg.dev/general-theiagen/staphb/snp-dists:0.8.2	Optional
snp_dists	memory	Int	Amount of memory/RAM (in GB) to allocate to the task	2	Optional
tsv_join	cpu	Int	Number of CPUs to allocate to the task	2	Optional
tsv_join	disk_size	Int	Amount of storage (in GB) to allocate to the task	100	Optional
tsv_join	docker	String	The Docker container to use for the task	us-docker.pkg.dev/general-theiagen/broadinstitute/viral-core:2.1.33	Optional
tsv_join	memory	Int	Amount of memory/RAM (in GB) to allocate to the task	7	Optional
tsv_join	out_suffix	String	Suffix of merged tsv files	.tsv	Optional
version_capture	docker	String	The Docker container to use for the task	us-docker.pkg.dev/general-theiagen/theiagen/alpine-plus-bash:3.20.0	Optional
version_capture	timezone	String	Set the time zone to get an accurate date of analysis (uses UTC by default)		Optional

Workflow Tasks

For the Augur subcommands, please view the Nextstrain Augur documentation for more details and explanations.

versioning: Version Capture

The versioning task captures the workflow version from the GitHub (code repository) version.

Version Capture Technical details

	Links
Task	task_versioning.wdl

augur align: Genome Assembly Alignment

augur align aligns multiple nucleotide sequences and strips insertions relative to a reference sequence by using the MAFFT aligner.

augur align Technical Details

	Links
Task	task_augur_align.wdl
Software Source Code	Augur on GitHub MAFFT on GitHub
Software Documentation	augur align on Nexstrain
Original Publication(s)	Nextstrain: real-time tracking of pathogen evolution Recent developments in the MAFFT multiple sequence alignment program

snp-dists: Pairwise SNP Distance Calculation

SNP-dists computes pairwise SNP distances between genomes. It takes the same alignment of genomes used to generate your phylogenetic tree and produces a matrix of pairwise SNP distances between sequences. This means that if you generated pairwise core-genome phylogeny, the output will consist of pairwise core-genome SNP (cgSNP) distances. Otherwise, these will be whole-genome SNP distances. Regardless of whether core-genome or whole-genome SNPs, this SNP distance matrix will exclude all SNPs in masked regions (i.e. masked with a bed file or gubbins).

The SNP-distance output can be visualized using software such as Phandango to explore the relationships between the genomic sequences. The task can optionally add a Phandango coloring tag (:c1) to the column names in the output matrix to ensure that all columns are colored with the same color scheme throughout by setting phandango_coloring to true.

SNP-dists Technical Details

	Links
Task	task_snp_dists.wdl
Software Source Code	SNP-dists on GitHub
Software Documentation	SNP-dists on GitHub

augur tree: Phylogenetic Tree Reconstruction

augur tree generates a phylogenetic tree using either iqtree, fasttree, or raxml. By default, the tree will be generated by IQ-TREE 2. FastTree can result in significant performance improvements at the cost of how phylogenetic resolution if the alignment contains 100s of sequences and computational throughput is a priority. Additionally, the task defaults to using a GTR evolutionary model, which can be modified via the substitution_model input.

augur tree Technical Details

	Links
Task	task_augur_tree.wdl
Software Source Code	Augur on GitHub FastTree on GitHub IQ-TREE on GitHub RAxML on GitHub
Software Documentation	augur tree on Nexstrain FastTree Documentation IQ-TREE on GitHub RAxML Documentation
Original Publication(s)	Nextstrain: real-time tracking of pathogen evolution FastTree 2 - Approximately Maximum-Likelihood Trees for Large Alignments New models and efficient methods for phylogenetic inference in the genomic era RAxML Version 8: A tool for Phylogenetic Analysis and Post-Analysis of Large Phylogenies

reorder_matrix: Matrix Reorder and Phylogenetic Tree Rooting

Reorder Matrix will reorder a TSV matrix file's entries in the same order as the tips of an inputted phylogenetic tree. The phylogenetic tree can be rooted at the midpoint via the midpoint_root_tree Boolean, or via an outgroup tip via the outgroup_root String input. The provided outgroup tip must be an exact match for a sequence input into the phylogenetic tree. Please note that phylogenetic tree tip names are derived from the alignment FASTA file headers in PHB, and may deviate from samplename inputs.

Reorder Matrix Technical Details

	Links
Task	task_reorder_matrix.wdl

augur refine: Phylogenetic Tree Refinement and Time-Calibration

augur refine adds metadata to a phylogenetic tree and can optionally calibrate branch lengths with respect to time using maximum-likelihood via TimeTree. Time-Calibration is triggered by incorporating collection_date in the provided metadata generated by Augur_Prep_PHB.

Augur Refine Technical Details

	Links
Task	task_augur_refine.wdl
Software Source Code	Augur on GitHub TreeTime on GitHub
Software Documentation	augur refine on Nextstrain TreeTime ReadTheDocs
Original Publication(s)	Nextstrain: real-time tracking of pathogen evolution TreeTime: Maximum-likelihood phylodynamic analysis

augur ancestral: Ancestral Nucleotide Sequence Reconstruction

augur ancestral infers ancestral nucleotide sequences based on phylogenetic relatedness using maximum-likelihood via TreeTime. A "joint" maximum likelihood model is used by default, though "marginal" input is permitted.

NOTE: keep-ambiguous and infer-ambiguous are mutually-exclusive, incompatible options that will raise an error if selected together.

augur ancestral Technical Details

	Links
Task	task_augur_ancestral.wdl
Software Source Code	Augur on GitHub TreeTime on GitHub
Software Documentation	augur ancestral on Nexstrain TreeTime ReadTheDocs
Original Publication(s)	Nextstrain: real-time tracking of pathogen evolution TreeTime: Maximum-likelihood phylodynamic analysis

augur translate: Translate Nucleotide Sequences

augur translate translates nucleotide sequences of nodes in a phylogeny to amino acids based on annotated features in a provided reference_genbank. The task will not run without a reference_genbank input.

augur_translate Technical Details

	Links
Task	task_augur_translate.wdl
Software Source Code	Augur on GitHub
Software Documentation	augur translate on Nextstrain
Original Publication(s)	Nextstrain: real-time tracking of pathogen evolution

extract mutation context: Contextualizing Mpox Mutation (only for mpox)

This task quantifies the number of G/A, C/T, and dinucleotide conversions for mpox samples. These mutations have been shown to be a characteristic of APOBEC3-type editing, which indicate adaptation of the virus to circulation among humans.

The results are formatted into a JSON that is used to contextualize mutation metadata on the Augur phylogeny.

When visualizing the output auspice_input_json file, there will be 2 new choices in the drop-down menu for "Color By":

• G→A or C→T fraction
• NGA/TCN context of G→A or C→T mutations.

An example Mpox tree with these "Color By" options can be viewed here

Extract Mutation Context Technical Details

	Links
Task	task_augur_mutation_context.wdl

augur traits: Ancestral Trait Reconstruction

augur traits will reconstruct the ancestral traits of provided metadata. By default, only the "pango_lineage" and "clade_membership" columns are included, though the augur_traits_columns String inputted can be populated with a comma-delimited string to determine what trait metadata to use.

augur traits Technical Details

	Links
Task	task_augur_traits.wdl
Software Source Code	Augur on GitHub
Software Documentation	augur traits on Nextstrain
Original Publication(s)	Nextstrain: real-time tracking of pathogen evolution

extract clade mutations: Extract Clade-Defining Signature Sequences

Extract Clade Mutations will create an Augur-compatible "clades.tsv" by extracting signature clade-defining sequences. A nucleotide JSON outputted by Augur Ancestral is required, and an optional amino acid JSON outputted by Augur Translate can be used to infer specific amino acid mutations.

Clade-defining signatures can only be extracted from monophyletic clades with unique mutation signatures. If no clade-defining mutations are reported, an error is raised. If the clade metadata column does not exist, then an error is raised as well.

Extract Clade Mutations Technical Details

	Links
Task	task_extract_clade_mutations.wdl
Software Source Code	Theiagen Utilities on GitHub TheiaPhylo on GitHub

augur clades: Assigning Clades based on Sequence Signatures

augur clades assigns clades to nodes in a tree based on amino-acid or nucleotide signatures. A clades_tsv is required to delineate clade-defining mutations in a tab-delimitted file with the header "clade\tgene\tsite\alt", where the site is an integer site and the alternative sequence character is delineated in the "alt" column. Clade designation preferentially references amino acid sequences if they are provided.

augur clades Technical Details

	Links
Task	task_augur_clades.wdl
Software Source Code	Augur on GitHub
Software Documentation	augur clades on Nexstrain
Original Publication(s)	Nextstrain: real-time tracking of pathogen evolution

augur export: Exporting Auspice-formatted Phylogenetic Trees

augur export outputs an Auspice-formatted JSON from an Augur-refined phylogenetic tree and its included metadata. The resulting JSON can be inputted directly into the web-based tree viewer, auspice.us.

augur export Technical Details

	Links
Task	task_augur_export.wdl
Software Source Code	Augur on GitHub Auspice on GitHub
Software Documentation	augur export on Nextstrain Auspice on Nextstrain
Original Publication(s)	Nextstrain: real-time tracking of pathogen evolution

Augur Outputs

The auspice_input_json is intended to be uploaded to Auspice to view the resulting phylogenetic tree with the provided metadata. Alternatively, a phylogenetic tree in Newick fromat is also available for visualization in other platforms. The metadata_merged output can also be uploaded to either Auspice or a different visualization platform to add further context to the phylogenetic visualization. The combined_assemblies output can be uploaded to UShER to view the samples on a global tree of representative sequences from public repositories.

The Nextstrain team hosts documentation surrounding the Augur workflow to Auspice visualization here, which details the various components of the Auspice interface: How data is exported by Augur for visualisation in Auspice.

Variable	Type	Description
augur_aligned_fastas	File	Alignment of inputted FASTAs
augur_auspice_input_json	File	Auspice-formatted JSON of tree and associated metadata
augur_clade_mutations	File	Clade-specific mutations identified in the analysis
augur_combined_assemblies	File	Concatenated FASTAs
augur_distance_tree	File	Phylogenetic tree without time-calibration
augur_fasttree_version	String	The fasttree version used, blank if other tree method used
augur_iqtree_model_used	String	The iqtree model used during augur tree, blank if iqtree not used
augur_iqtree_version	String	The iqtree version used during augur tree (defualt), blank if other tree method used
augur_keep_list	File	List of samples that were kept and met length filters
augur_mafft_version	String	The mafft version used in augur align
augur_metadata_merged	File	TSV file of merged metadata
augur_phb_analysis_date	String	The date the analysis was run
augur_phb_version	String	The version of the Public Health Bioinformatics (PHB) repository used
augur_raxml_version	String	The version of raxml used during augur tree, blank if other tree method used
augur_snp_matrix	File	SNP matrix generated from alignment
augur_time_tree	File	Time-calibrated phylogenetic tree
augur_traits_json	File	JSON of traits used for applying metadata to the phylogenetic tree
augur_version	String	Version of Augur used

References

When publishing work using the Augur_PHB workflow, please reference the following:

Nextstrain: Hadfield J, Megill C, Bell SM, Huddleston J, Potter B, Callender C, Sagulenko P, Bedford T, Neher RA. Nextstrain: real-time tracking of pathogen evolution. Bioinformatics. 2018 Dec 1;34(23):4121-3.
