Coverage report

The coverage report lists every gene and its percent gene coverage over a minimum depth (default: 10) relative to the H37Rv genome; regions are determined by using the --coverage_bed input file. This report is useful for determining whether any genes of interest have low coverage that may impact the reliability of resistance calls.

Coverage report columns

ERR columns only appear if an --err_coverage_bed input file is provided. Please see the Inputs for more details.

Column name Explanation
sample_name The name of the sample
locus_tag The locus tag for the region
gene_name The name of the gene
percent_coverage The percentage of a region (specified by the --coverage_bed input file) that has a read depth over the minimum value (default: 10; user-customizable by altering --min_depth)
average_depth The average read depth across that region (specified by the --coverage_bed input file)
err_percent_coverage The percentage of the region (specified by the --err_coverage_bed input file) that has a read depth over the minimum value (default: 10; user-customizable by altering --min_depth)
Only appears if --err_coverage_bed is provided
err_average_depth The average read depth across a region (specified by the --err_coverage_bed input file)
Only appears if --err_coverage_bed is provided
qc_warning Indicates if any deletions were identified in the gene which may contribute to lower than expected coverage

Locus vs Target coverage reports

Each line/entry in your BED file defines a BedRecord — a stretch of the genome where tbp-parser counts reads and calculates coverage. How you define these regions directly controls what gets measured and what appears in your coverage reports.

  • The locus coverage report aggregates all BedRecords that share the same locus tag and considers them as a single unit.
  • The target coverage report keeps each BedRecord as its own separate unit.

Which report gets generated?

If any BedRecords share the same locus tag, both the locus and target coverage reports will be generated. Otherwise, only the locus coverage report will be generated.

QC uses locus-level coverage

All coverage-based QC determinations use the locus-level breadth of coverage.

For example, if primer 1 for katG has poor coverage but primer 2 for katG has sufficient coverage, QC checks use the overall ratio of the aggregated coverage, not the individual primer regions.

Example 1: one target region in BED file

When a BED file contains a single BedRecord (one gene name for one locus tag),

BED file:
Chrom    1        500    Rv0005       gyrB

only the locus coverage report is produced:

locus_coverage_report.csv:

sample_name  locus_tag  gene_name  percent_coverage  average_depth  qc_warning
sample01     Rv0005     gyrB       100.000           542.310

  → percent_coverage = (num_positions ≥ min_depth) / num_positions
  → average_depth = (sum of reads at every position) / num_positions

Example 2: split regions

A gene can be covered by multiple non-overlapping target regions (common in tNGS), resulting in multiple BedRecords with the same locus tag but different gene names and a gap between them:

BED file:
Chrom    100      200    Rv0667       rpoB_1
Chrom    300      400    Rv0667       rpoB_2

├── rpoB_1 ──┤              ├── rpoB_2 ──┤
100         200            300         400
                    ↑
              (gap: 201–299)

Because there are more targets (2) than loci (1), both reports are generated:

locus_coverage_report.csv:

sample_name  locus_tag  gene_name  percent_coverage  average_depth  qc_warning
sample01     Rv0667     rpoB       95.000            280.500
                                   ↑ aggregated across positions 100–200 AND 300–400 (202 total positions)

target_coverage_report.csv:

sample_name  locus_tag  gene_name  percent_coverage  average_depth  qc_warning
sample01     Rv0667     rpoB_1     100.000           350.100
sample01     Rv0667     rpoB_2     90.000            210.900
                                   ↑ each `BedRecord` measured independently

Note that the gap (positions 201–299) is not measured at all and no reads are counted there. The locus report aggregates only the positions defined by the BedRecords (100–200 and 300–400), meaning locus-level breadth of coverage reflects only the regions defined in the BED file, not the entire gene.

Example 3: overlapping regions

A gene can be covered by multiple overlapping target regions (common in tNGS), resulting in multiple BedRecords with the same locus tag but different gene names that overlap:

BED file:
Chrom    1        200    Rv1908c      katG1
Chrom    150      400    Rv1908c      katG2

├──── katG1 ────┤
1               200
            ├────── katG2 ──────┤
            150                 400

Because there are more targets (2) than loci (1), both reports are generated:

locus_coverage_report.csv:

sample_name  locus_tag  gene_name  percent_coverage  average_depth  qc_warning
sample01     Rv1908c    katG       100.000            3471.463
                                   ↑ aggregated across ALL positions 1–400

target_coverage_report.csv:

sample_name  locus_tag  gene_name  percent_coverage  average_depth  qc_warning
sample01     Rv1908c    katG1      100.000           2202.284
sample01     Rv1908c    katG2      100.000           3556.657
                                   ↑ each `BedRecord` measured independently (positions 1–200 for katG1, 150–400 for katG2)

The locus coverage report combines all reads from katG1 and katG2 into a single measurement across positions 1–400. The target report calculates coverage for each BedRecord separately.

Example 4: resolving overlapping regions

In Example 3 above, katG1 and katG2 share an overlapping region (positions 150–200). Without overlap resolution, a read spanning that region gets counted in both BedRecords — inflating the locus coverage when they're aggregated together.

With --resolve_overlapping_regions enabled, tbp-parser identifies reads that only appear in non-overlapping portions of each BedRecord and uses those as a whitelist:

katG1: ├──────────────────┤
        1               200
              ├ overlap ┤
katG2:        ├───────────────────┤
              150               400

Non-overlapping katG1:   1 ─── 149  (unique to katG1)
Overlap zone:          150 ─── 200  (shared)
Non-overlapping katG2: 201 ─── 400  (unique to katG2)

For each BedRecord, tbp-parser will:

  1. Find all reads that appear in the non-overlapping portion of that BedRecord
  2. Use those read names as a whitelist
  3. Reanalyze all positions (including the overlap zone), keeping only the whitelisted reads

This prevents double-counting when the BedRecords are aggregated together in the locus coverage report. The impact is visible in both reports:

WITHOUT --resolve_overlapping_regions:

locus_coverage_report.csv:
sample_name  locus_tag  gene_name  percent_coverage  average_depth  qc_warning
sample01     Rv1908c    katG       100.000           3471.463  ← inflated by double-counted reads

target_coverage_report.csv:
sample_name  locus_tag  gene_name  percent_coverage  average_depth  qc_warning
sample01     Rv1908c    katG1      100.000           2202.284  ← inflated by double-counted reads
sample01     Rv1908c    katG2      100.000           3556.657  ← inflated by double-counted reads

WITH --resolve_overlapping_regions:

locus_coverage_report.csv:
sample_name  locus_tag  gene_name  percent_coverage  average_depth  qc_warning
sample01     Rv1908c    katG       100.000            2683.554  ← only whitelisted reads

target_coverage_report.csv:
sample_name  locus_tag  gene_name  percent_coverage  average_depth  qc_warning
sample01     Rv1908c    katG1      100.000            2068.351  ← only whitelisted reads
sample01     Rv1908c    katG2      100.000            2766.803  ← only whitelisted reads

Trade-off: short reads and large overlaps

Note that overlap resolution may reduce coverage in both reports. Reads that fall entirely within an overlapping region, without extending into any unique region, are excluded because they cannot be confidently assigned to a specific BedRecord. This means that larger overlaps relative to the read length result in more reads being excluded. This is a conservative and more accurate approach for handling tNGS data with overlapping regions. Consider this trade-off when deciding whether to enable --resolve_overlapping_regions.

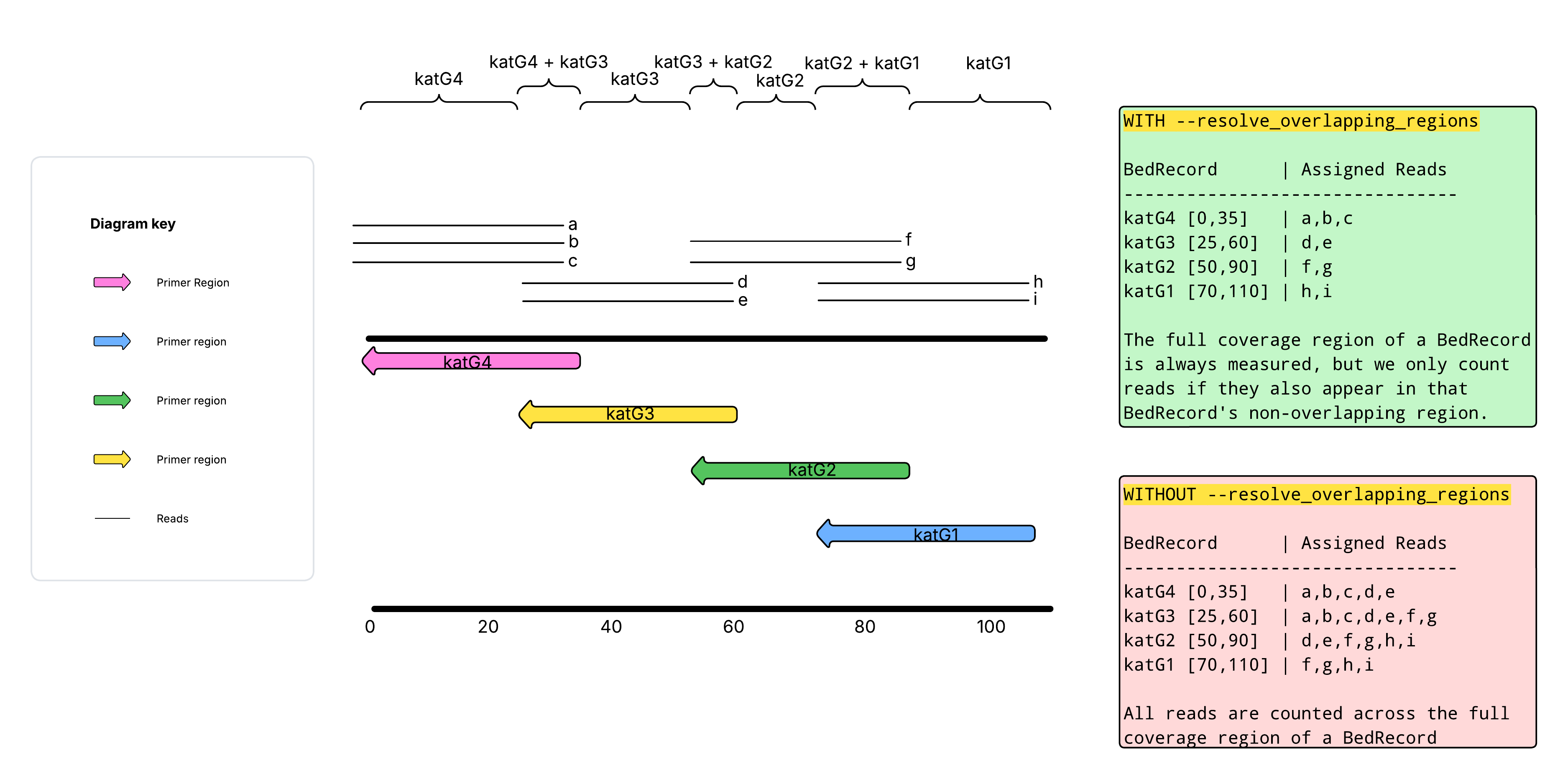

A visual example

A visual example of how overlapping primer regions are resolved

This example shows how the reads associated with each BedRecord are whitelisted based on their presence in the non-overlapping regions when --resolve_overlapping_regions is enabled.

QC warnings in coverage reports

A deletion is considered valid if:

  1. It is a deletion within the ORF (open reading frame)
  2. It passes positional QC (sufficient depth, frequency, and read support)
  3. Its genomic coordinates overlap with the coverage region (either locus or target) being measured

Valid deletions are flagged and reported in the qc_warning column and may explain why a gene's coverage may be lower than expected.

How --err_coverage_bed affects deletion warnings

The qc_warning column reports deletions differently depending on whether ERR coverage is active:

  • Without --err_coverage_bed: All valid deletions in the full target/locus region are reported
  • With --err_coverage_bed: Only valid deletions that fall within the ERR region are reported

A deletion that exists in the full locus/target region but falls outside the ERR region will not appear in qc_warning when an --err_coverage_bed file is provided.

The --use_err_for_qc flag does not affect the coverage report

The --use_err_for_qc flag controls whether ERR regions are used in place of full regions for locus QC decisions (e.g., determining "Insufficient Coverage"). The coverage report's qc_warning column is controlled solely by whether --err_coverage_bed is provided — if it is, only deletions within the ERR region are reported regardless of the --use_err_for_qc setting.

Deletions are shown only for the region they overlap. Consider rpoB split across two BedRecords, with two deletions:

  • c.727_728delGTinsAC — falls within rpoB_1
  • c.1291_1292delAGinsCC — falls within rpoB_2

In the locus coverage report, all deletions across both BedRecords are aggregated into a single warning for the locus:

locus_coverage_report.csv:

sample_name  locus_tag  gene_name  percent_coverage  average_depth  qc_warning
sample01     Rv0667     rpoB       85.000            280.500        Contains valid deletion(s) in full locus region: c.727_728delGTinsAC; c.1291_1292delAGinsCC

In the target coverage report, each deletion only appears on the specific BedRecord it overlaps with:

target_coverage_report.csv:

sample_name  locus_tag  gene_name  percent_coverage  average_depth  qc_warning
sample01     Rv0667     rpoB_1     90.000            350.100        Contains valid deletion(s) in full target region: c.727_728delGTinsAC
sample01     Rv0667     rpoB_2     80.000            210.900        Contains valid deletion(s) in full target region: c.1291_1292delAGinsCC

The target coverage report lets you see exactly which region contains which deletion, while the locus coverage report gives the combined picture.

Customizing column names

To overwrite any of the output column names or text in the coverage reports, please use the following format in a configuration file or use the command-line parameter --find_and_replace:

FIND_AND_REPLACE:
  "gene_name": "My_Gene_Column"
  "percent_coverage": "My_Percent_Coverage_Column"
  ...

Please note that this will rename every instance of that text in all output reports (every instance of "gene_name" will be renamed to "My_Gene_Column" in all output files, etc.).
