Inputs

Required Inputs¶

tbp-parser is designed to run immediately after Jody Phelan’s TBProfiler tool. Only three inputs are required: the JSON file produced by TBProfiler and the BAM and BAI file produced by TBProfiler.

Parameter	Description	Purpose
input_json	The path to the JSON file that was produced by `TBProfiler` v6+	Contains information about the mutations detected in the sample: quality, type, and any antimicrobial resistance information.
input_bam	The path to the BAM file that was produced by `TBProfiler` v6+. The associated BAI must be in the same directory.	Contains the alignment information for the sample; needed for determining sequencing quality for quality control.

Optional Inputs¶

tbp-parser can be customized with a number of optional input parameters. These parameters control:

files that contain information about the genes of interest and their associated antimicrobials
files that control the LIMS output report formatting
quality control thresholds
text in the output reports (column names, sequencing method, etc.)

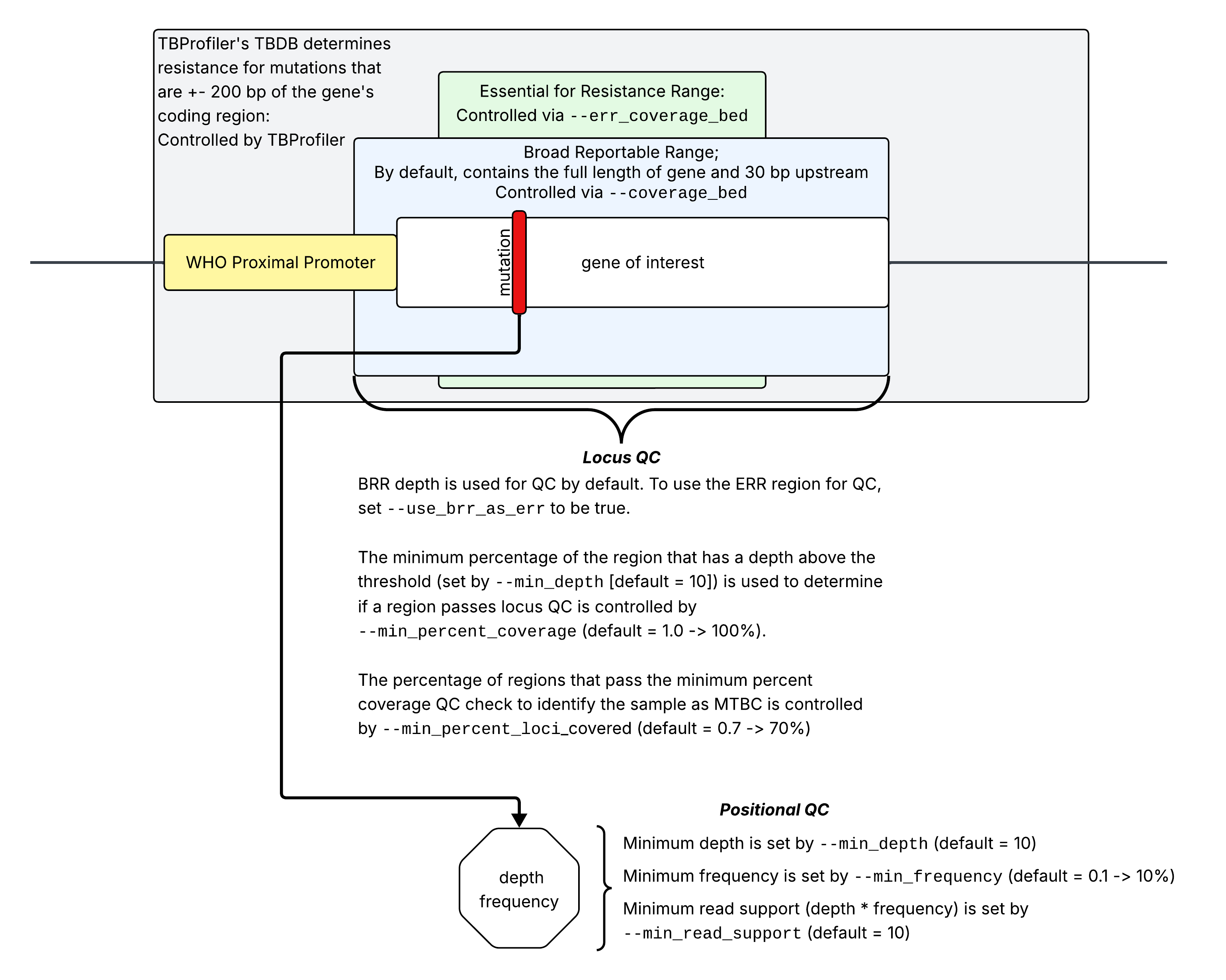

Click to show a diagram depicting various input parameter interaction

File Arguments¶

A description of each file follows the table.

Name	Description	Default Value
`--config`	the configuration files to use, in YAML format. This argument overrides all other arguments EXCEPT for the other file-type arguments.
`--coverage_bed`	the BED file containing the genes of interest, their locus tags, and their regions for QC/coverage calculations; should be formatted like the TBDB.bed file in TBProfiler	/data/tbdb.bed
`--lims_report_format_yml`	an optional YAML file that specifies the format of the LIMS report; if not provided, a default format will be used	/data/default-lims-report-format.yml
`--gene_database_yml`	an optional YAML file that specifies the gene database information for the genes of interest; if not provided, a default format will be used	/data/default-gene-database_2026-03-03.yml

Configuration File¶

Instead of providing the input parameters on the command line, the ability to provide a configuration file in YAML format is available. This file (and any included fields) are case-sensitive and should be written in all caps.

The configuration file will accept input parameters from the Quality Control Arguments, tNGS-specific Arguments, and Text Arguments. File Arguments and Logging Arguments should be provided separately on the command line. The configuration file can be provided using the --config argument. Input parameters should be indicated in all caps and should match the long version of the command-line arguments (e.g. MIN_FREQUENCY instead of -f or --min_frequency).

# I can overwrite any input parameters, like so.
# This makes it easy to rerun the same analysis on different
# samples without rewriting all of the parameters each time.
MIN_FREQUENCY: 0.1
MIN_PERCENT_LOCI_COVERED: 0.7
TNGS: true
RESOLVE_OVERLAPPING_REGIONS: true
TNGS_FREQUENCY_BOUNDARIES:
- 0.1
- 0.95
TNGS_READ_SUPPORT_BOUNDARIES:
- 100
- 500

# I can also use the configuration file to customize output files.
# My laboratory reports "rifampicin" as "rifampin", so I want to
# rename that text in all of the output files. I also use Rv0678
# instead of mmpR5 and Rv2983 instead of fbiD; and I need to rename
# an output column in the LIMS report from "Sample Name" to "sample"
FIND_AND_REPLACE:
  rifampicin: "rifampin"
  fbiD: "Rv2983"
  mmpR5: "Rv0678"
  "Sample Name": "sample"

Coverage BED File¶

The Coverage BED file is the tab-delimited BED file that contains gene regions of interest and their associated antimicrobials. This file is used for quality control calculations. The file should be formatted like the genes.bed file in TBProfiler, with the following columns in this order:

chrom: the chromosome or contig name which must match the chromosome name in the BAM file (e.g. "Chromosome")
start: the start position of the gene (e.g. 1)
end: the end position of the gene (e.g. 1524)
locus_name: the locus name of the gene (e.g. "Rv0001")
gene_name: the gene name (e.g. "dnaA")

Any other columns after the first 5 columns will be ignored, but can be used to provide additional information about the gene (e.g. associated antimicrobials) for personal use. For example, the following is a valid BED file:

Chromosome  1       1524    Rv0001  dnaA    isoniazid
Chromosome  4933    7267    Rv0005  gyrB    levofloxacin,moxifloxacin

Please note that this file does not have a header line. The default file used in tbp-parser was retrieved from the TBProfiler repository here with commit hash 44ce9b5.

This is the same format used for the optional --err_coverage_bed file, which is an optional input parameter primarily for tNGS analysis (see below).

LIMS Report Format YAML File¶

Different LIMS systems may require different column formatting for easy import. The LIMS report format YAML file allows users to specify the output column names for the LIMS report output. If this file is not provided, a default format will be used. This default includes all gene-drug combinations found in the default coverage BED file.

The output column names can be customized to contain any text according to your laboratory's needs by providing a custom lims_report_format_yml file, which should take the following format:

# do not modify unbracketed text
# <this text can be fully customized>
# [this text must match TBProfiler nomenclature for drug and gene names]

- drug: [drug_name]
  drug_code: <antimicrobial_column_name_in_lims_report>
  gene_codes:
    [gene_name]: <column_name_for_gene_drug_combo_in_lims_report>
    [gene_name]: <column_name_for_gene_drug_combo_in_lims_report>
    ...
- drug: [drug_name]
  drug_code: <antimicrobial_column_name_in_lims_report>
  gene_codes: {}
...

drug_name is the name of the drug as it appears in TBProfiler (for example, "rifampicin").
gene_name is the name of the gene as it appears in TBProfiler (for example, "rpoB").
antimicrobial_column_name_in_lims_report is the desired name of the output column in the LIMS report that indicates the highest resistance interpretation for that drug (for example, "RIF").
column_name_for_gene_drug_combo_in_lims_report is the desired name of the output column in the LIMS report that indicates any mutations found in that gene that are responsible for the predicted resistance for that drug (for example, "RIF_rpoB").

For example:

- drug: rifampicin
  drug_code: RIF
  gene_codes:
    rpoB: RIF_rpoB
- drug: amikacin
  drug_code: AMK
  gene_codes:
    bacA: AMK_bacA
    ccsA: AMK_ccsA
    eis: AMK_eis
...

Please see the LIMS report section for more information on this input file, the report, its purpose, and additional customization options.

Gene Database File¶

tbp-parser also includes a gene database file that contains a dictionary of the following information for each gene:

locus_tag: the locus tag of the gene (e.g. Rv0005)
gene_name: the gene name (e.g. gyrB)
tier: the tier of the gene (e.g. Tier 1)
promoter_region: the WHO-specified proxmial promoter region (e.g. [-108, -1])
drugs: the antimicrobials associated with this gene (e.g. [levofloxacin, moxifloxacin])

By default, this database contains information for every gene in the default coverage BED file described above. If you would like to include a different gene, or modify the content of existing entries, you can do so by using the following format:

# do not modify unbracketed text
# text within angle brackets should be replaced with the appropriate information for the gene of interest
<locus_tag_of_gene>:
  locus_tag: <locus_tag_of_gene>
  gene_name: <gene_name>
  tier: <tier_of_gene>
  promoter_region: [<WHO-specified_proximal_promoter_regions_start>, <WHO-specified_proximal_promoter_regions_end>]
  drugs: [<drug_1>, <drug_2>, ...]
<locus_tag_of_gene2>:
  ...
...

If information for your gene of interest is not available, please use the following values as placeholders:

for tier, use NA
for promoter_region, use []

Content for the locus_tag, gene_name, and drugs fields is required for proper function.

For example, the following are valid entries in the gene database file:

Rv0001:
    locus_tag: Rv0001
    gene_name: dnaA
    tier: NA
    promoter_region: [-314, -1]
    drugs: [isoniazid]
Rv0676c:
    locus_tag: Rv0676c
    gene_name: mmpL5
    tier: Tier 1
    promoter_region: []
    drugs: [bedaquiline, clofazimine]

Quality Control Arguments¶

These options determine the thresholds for quality control.

Short Version	Long Version	Description	Default Value
`-d`	`--min_depth`	The minimum depth of coverage required for a site to pass QC	10
`-c`	`--min_percent_coverage`	The minimum percentage of a region that has depth above the threshold set by `min_depth` (used for a gene/locus to pass QC; 1.0 -> 100%)	1.0
`-s`	`--min_read_support`	The minimum read support for a mutation to pass QC	10
`-f`	`--min_frequency`	The minimum frequency for a mutation to pass QC (0.1 -> 10%)	0.1
`-l`	`--min_percent_loci_covered`	The minimum percentage of loci/genes in the LIMS report that must pass coverage QC for the sample to be identified as MTBC (0.7 -> 70%)	0.7

tNGS-specific Arguments¶

These options are primarily used for tNGS data.

Name	Description	Default Value
`--tngs`	Indicates that the input data was generated using a tNGS protocol. Turns on tNGS-specific features	false
`--err_coverage_bed`	the BED file containing the "essential for resistance regions." This file indicates to tbp-parser that these regions should also have breadth of coverage and average depth calculations performed; this file should be formatted like the genes.bed file in TBProfiler and the coverage BED described above
`--use_err_for_qc`	if an ERR BED file is provided, use the ERR coverage regions in place of the typical coverage regions for all QC determinations. Note: This will influence how variants are interpretated and how deletions are reported because the QC thresholds for breadth of coverage and average depth will be based on the coverage found within the ERR regions.	false
`--resolve_overlapping_regions`	Resolve overlapping BED regions to avoid double-counting reads across overlapping targets. Recommended for tNGS data with overlapping amplicon regions. See Handling overlapping primer regions and the section on the coverage report for more details	false
`--tngs_frequency_boundaries`	the frequency boundaries (comma-delimited; `lower_f,upper_f`) for tNGS QC reporting, used in conjunction with `--tngs_read_support_boundaries`	0.1,0.1
`--tngs_read_support_boundaries`	the read support boundaries (comma-delimited; `lower_r,upper_r`) for tNGS QC reporting, used in conjunction with `--tngs_frequency_boundaries`	10,10

Text Arguments¶

These options are used verbatim in the reports, or are used to name the output files.

Short Version	Long Version	Description	Default Value
`-m`	`--sequencing_method`	The sequencing method used to gerneate the data; used in the LIMS & Looker reports. Enclose in quotes if including a space	"Sequencing method not provided"
`-t`	`--operator`	The operator who ran the analysis; used in the LIMS & Looker reports. Enclose in quotes if including a space	"Operator not provided"
`-o`	`--output_prefix`	The prefix to use for the output files. Do not include any spaces	"tbp_parser"
`-fr`	`--find_and_replace`	A JSON string that can be used to specify any text in the output files that should be find-and-replaced with other text. The keys will be the text to find, and the values will be the text to replace it with. This is useful for labs that want to customize the text in their reports (e.g. renaming drugs or genes or output columns). For example, `'{"rifampicin": "rifampin", "fbiD": "Rv2983", "mmpR5": "Rv0678", "p.0?": ""}'`	'{}'

Logging Arguments¶

These options change the verbosity of the stdout log.

Name	Description	Default Value
`--debug`	The highest level of output verbosity detailing every step of the analysis and logic implemented; overwrites --verbose	false
